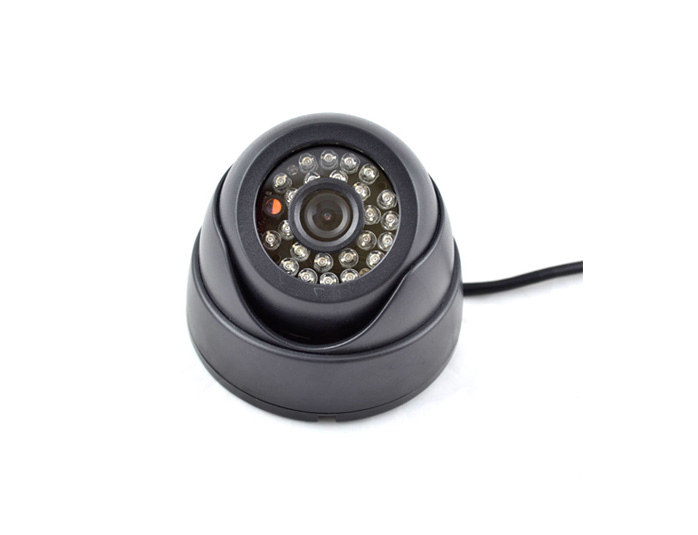

TYD-719C42 Plastic Big Conch 720P
  • TYD-719C42 Plastic Big Conch 720P
TYD-719C42 Plastic Big Conch 720P
①Advanced bright color separation, signal filtering, 3D noise reduction technology, higher image clarity, better image restoration
②Using common 75-3 line for coaxial transmission up to 500 meters
③The front-end data is not encoded and compressed to the back-end, full real-time, high-fidelity
④ Compatible with ordinary D1/960H, compatible with analog peripheral equipment (including distributor, matrix, etc.)
⑤Support OSD menu design
⑥Common analog price, high-definition quality HD products
⑦Integrated AHD front-end DSP chip
⑧Third-party open standards, compatible with other manufacturers’ AHD products
support hotline:
0755-29470519
Product Details

Structure size

The structure size is shown in the figure below, the unit is millimeters, the error is ±0.6mm, the outer diameter of the product base is φ93.00mm, and the total height is 65.00mm (as shown in the figure below).






Product parameter

1 Product number TYD-719C42
2 shell material plastic shell
3 Exterior color black
4 Imaging device AHD 720P
5 Signal System PAL
6 Effective Pixels PAL:1280(H)×720(V)
7 Synchronization system Internal synchronization
8 Horizontal resolution 720P
9 Minimum illumination 0 LUX{infrared start}
10 Video output 1.0vp-p, 75Ω
11 Gamma coefficient 0.45
12 Signal-to-noise ratio Greater than 48dB
13 White balance Auto
14 Electronic shutter 1/60-1/100000 (seconds)
15 BLC Auto
16 Current 240mA±10% (infrared start), 60mA±10% (infrared not start)
17 Voltage DC 12V±10%
18 Operating temperature -20℃~75℃
19 Relative ambient temperature Humidity is between 30% and 85%
20 Camera angle 2.8mm/100°
21 Connection connector Standard 4-core aviation head (customizable)
22 microphone Can take recording
23 Camera weight 150g


Standard configuration

Serial number name quantity Unit Remark
1 Big Conch Camera 1 Only Standard
2 Self-tapping screws 3 Pieces Standard


Connector description


1 VCC-12V power supply
2 GND-ground
3 audio signal (optional)
4 video signal
