Vehicle mounted video surveillance host

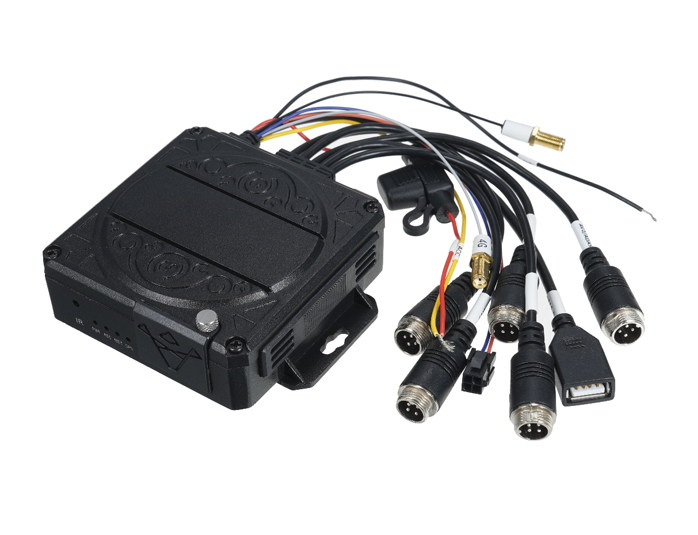

TYD-Mini51 Car AI SD Card Recorder

The TYD-Mini51 car mounted SD card recorder adopts highly integrated H.265/H.264 ASIC, with excellent image quality and maximum support for one 256G TF card. The system has excellent anti vibration performance. The all metal sealed casing design is very suitable for use in automotive environments.
In addition to integrating a driving information recorder, it can be fully equipped with GPS/Beidou, 4G, WiFi and other modules, with a built-in 1.5T computing power, and can support 4 channels of BSD/ADAS/DMS video analysis algorithms. The accompanying video playback software not only enables multi-channel synchronous playback, but also enables synchronous playback of video and GPS data, facilitating video analysis.

support hotline：
0755-29470519

Product Details

Product Features

Supports up to 4 channels (4 analog) of video and audio input

Adopting H.265/H.264 compression algorithm, recording resolution up to 1080P, supporting independent dual stream network transmission

Built in 1.5T computing power, capable of implementing 4 channels of BSD, ADAS, DMS

Supports 1 TF card with a maximum capacity of 256GB for loop recording

Built in positioning module, supporting GPS/Beidou dual-mode

Built in 4G communication module/WIFI/G-Sensor

2-channel alarm input interface, 1-channel alarm output interface

1 RS232 interface, compatible with battery detection/tire temperature and pressure monitoring equipment

8-36V power input

Can independently turn off external 12V 5V power output

Built in supercapacitor for data protection during abnormal power outages, ensuring data integrity

All metal sealed casing

Technical Parameter

Model	TYD- Mini51
VIDEO IN	4-channel AHD analog high-definition
Video input parameters	1.0Vp-p, 75 euros
Video output	1 channel, CVBS or VGA output (default CVBS output)
Video output parameters	1.0Vp-p, 75 euros
Encode Algorithm	H.265/H.264
Iintelligent algorithms	1.5T computing power, capable of supporting 4 BSD channels or 1 ADAS+1 DMS+2 BSD channels simultaneously
Real time monitoring Image resolution	1080P/D1
Dual stream - total resources of main stream	100FPS @ 1080P
Dual stream - Total resources from the stream	100FPS@D1
Video resolution	1080P、720P、D1、CIF
Dual code streaming network transmission	Support independent network transmission of stream CIF/D1/720P
Playback video frame rate	PAL: 1-25 frames per second, NTSC: 1-30 frames per second
Recording bitrate	16K~2M adjustable, also customizable (unit: bps)
Audio input	4 routes
Audio input parameters	3Vp-p linear level, 1K ohms
Audio output	1 Road
Audio output parameters	2Vp-p linear level, 600 ohms
Equipment interface	1 RS232, compatible with serial devices such as battery monitoring equipment/tire temperature and pressure
Storage devices	Single TF card, maximum support 256GB
Mobile communication module	Optional built-in 3G/4G (EVDO/WCDMA/TD-SCDMA) communication module
WiFi	Built-in
GPS module	Built-in
G-Sensor	Built-in
Alarm input	2-channel alarm high input
Alarm output	1 output
Video recording mode	Continuous recording, loop recording, alarm recording
Video retrieval method	Quick retrieval by channel, time, recording type, and storage location of recording data;
Character overlay	Support (such as license plate number, time, driving information, etc.)
Power on	Timed startup, ignition startup
Shut down	Timed shutdown, delayed shutdown after turning off the car (0 minutes to 9999 minutes)
Power input	DC 6-36V
Power output	DC12V 2A， 5V 2A
Host power consumption	8W (excluding communication module)
Working temperature	-20℃～＋70℃
Working humidity	10%～95%
Protection level	IP54
Weight	About 0.5Kg
Host volume	Approximately 100mm (width) x 100mm (depth) x 25mm (height)
