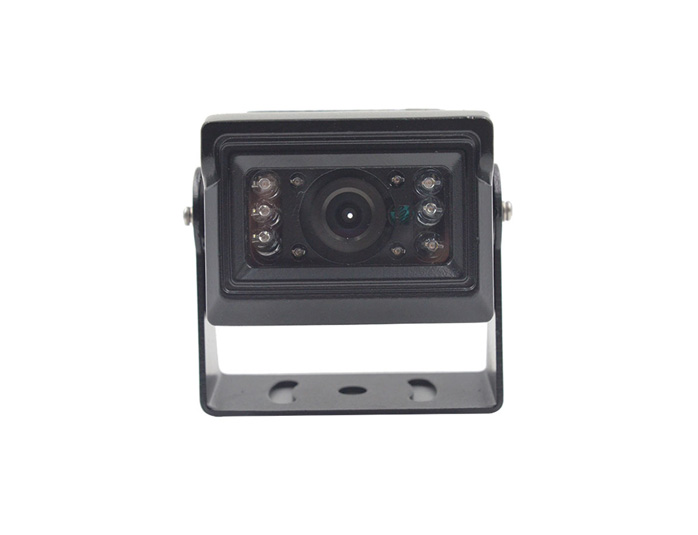

TYD-907 waterproof camera
  • TYD-907 waterproof camera
TYD-907 waterproof camera
Exquisite shell, shockproof and explosion-proof
Dustproof and waterproof standard reaches IP67
Wide-angle lens, viewing angle 120 degrees
High definition, up to 600 lines
Digital fill light, infrared night vision, good effect when the light is insufficient
The internal circuit is optimized many times, low power consumption, stable and reliable
Standard 4-pin aviation connector, can also be customized according to customer needs
support hotline:
0755-29470519
Product Details
1 Product number TYD-907
2 shell material metal shell
3 Exterior color black
4 Imaging device 1/3 SONY CCD
5 Signal System PAL/NTSC
6 Effective Pixels 792 (horizontal) × 596 (vertical) / 811 (horizontal) × 509 (vertical)
7 Synchronization system Internal synchronization
8 Horizontal resolution 800TV lines
9 Minimum illumination 0 LUX{infrared start}
10 Video output 1.0vp-p, 75Ω
11 Gamma coefficient 0.45
12 Signal-to-noise ratio Greater than 48dB
13 White balance Auto
14 Electronic shutter 1/60-1/100000 (seconds)
15 BLC Auto
16 Current 197mA±10% (infrared start), 53mA±10% (infrared does not start)
17 Voltage DC 12V±10%
18 Operating temperature -20°C~75°C
19 Relative ambient temperature Humidity is between 30% and 85%
20 Camera angle 3.6MM/2.8MM optional
21 Use environment outdoor
22 Protection level IP67
23 Connection connector Standard 4-core aviation head (customizable)
24 microphone Without
25 Camera weight 280g
