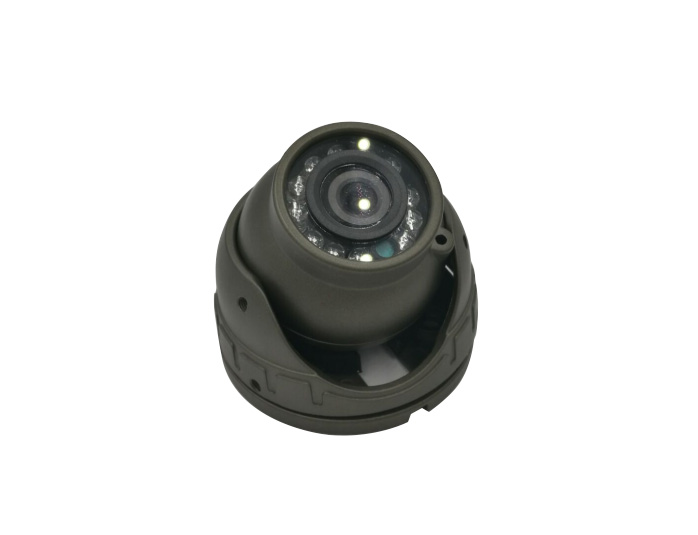

TYD-939 metal small conch
  • TYD-939 metal small conch
TYD-939 metal small conch
12 infrared lights, effective distance of 10 meters
Metal shell, not easy to age
Standard 3.6mm lens, optional other specifications lens
High definition, up to 700 lines
Digital fill light, infrared night vision, good effect when the light is insufficient
The internal circuit is optimized many times, low power consumption, stable and reliable
Standard 4-pin aviation connector, can also be customized according to customer needs
support hotline:
Product Details
technical parameter
1 Product number TYD-939
2 shell material metal shell
3 Exterior color Han Gray
4 Imaging device 1/3   SONY CCD
5 Signal System PAL
6 Effective Pixels 768 (horizontal) × 494 (vertical)
7 Synchronization system Internal synchronization
8 Horizontal resolution 700TV   lines
9 Minimum illumination 0 LUX{infrared start}
10 Video output 1.0vp-p,   75Ω
11 Gamma coefficient 0.45
12 Signal-to-noise ratio Greater than 48dB
13 White balance Auto
14 Electronic shutter 1/60-1/100000 (seconds)
15 BLC Auto
16 Current 210mA±10% (infrared start), 70mA±10% (infrared not start)
17 Voltage DC   12V±10%
18 Operating temperature -20°C~70°C
19 Relative ambient temperature Humidity is between 30% and 85%
20 Camera angle 3.6mm/90°;2.8mm/105°
21 Use environment outdoor
22 Protection level IP66
23 Connection connector Standard 4-core aviation head (customizable)
24 microphone Optional
25 Camera weight 170g
