AHD series

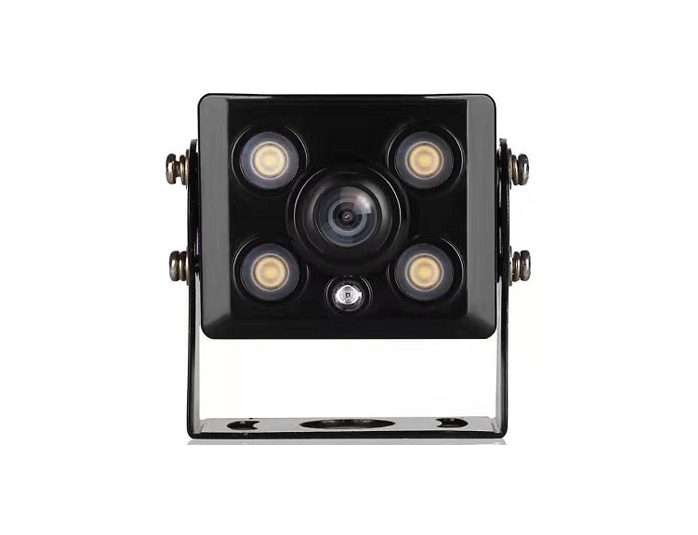

TYD-919C6 Glue camera

①Advanced bright color separation, signal filtering, 3D noise reduction technology, higher image clarity, better image restoration
②Using common 75-3 line for coaxial transmission up to 500 meters
③The front-end data is not encoded and compressed to the back-end, full real-time, high-fidelity
Compatible with ordinary D1/960H, compatible with analog peripheral equipment (including distributor, matrix, etc.)
④Support OSD menu design
⑤Common analog price, high-definition quality HD products
⑥Integrated AHD front-end DSP chip
⑦Third-party open standards, compatible with other manufacturers’ AHD products

support hotline：
0755-29470519

Product Details

Structure size
The structure size is shown in the figure below, the unit is millimeters, and the error is ±0.5mm. The outer dimensions of the product: length 52.70mm, width: 37.50mm, height 56.38mm (as shown in the figure below).

Product parameter

model	TYD-919C6
Effective Pixels	1280(H)×720(V)
Standard	PAL
SYNC	INNER SYNC
shutter	1/53～1/100000s；
Automatic gain	AGC/ AGC + Slow shutter
Signal-to-noise ratio	＞52dB（AGC OFF）
Video output standard	1.0Vp-p,75Ω
Resolution	720P
Minimum illumination	Color 0.5Lux(50IRE,AGC ON) /W:0.01Lux(50IRE,AGC ON)
Color black and white conversion	Color /Auto
Color black and white conversion time control	0～255
Dot matrix light	4 pcs
Lens	2.8MM
Privacy zone	1～15zones
Motion detection	4 Zones
Video interface	Aviation head
White balance	ATW /PUSH/User1/ User 2/ Manual/ANTI CR/PUSH LOCK
Title	Can be set
Title Position	Any position on the screen
DNR	High/Medium to high/Medium/Low to medium/Low/Off
Pic contrast	0-63
Pic sharpness	0-15
Audio	none
power supply	DC12V±10% (AC24V optional)
Protection level	IP67
Current	The current of the infrared lamp on/off is: 196mA/50mA±10%
Operating temperature	-20℃～60℃
Working humidity	<90%
storage temperature	-400C～+600C
