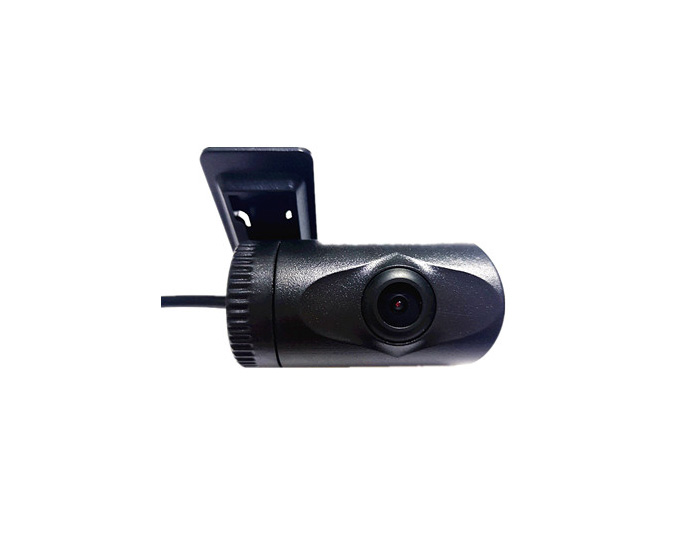

TYD-618C42 front camera 720P
  • TYD-618C42 front camera 720P
TYD-618C42 front camera 720P
①Advanced bright color separation, signal filtering, 3D noise reduction technology, higher image clarity, better image restoration
②Using common 75-3 line for coaxial transmission up to 500 meters
③The front-end data is not encoded and compressed to the back-end, full real-time, high-fidelity
Compatible with ordinary D1/960H, compatible with analog peripheral equipment (including distributor, matrix, etc.)
④Support OSD menu design
⑤Common analog price, high-definition quality HD products
⑥Integrated AHD front-end DSP chip
⑦Third-party open standards, compatible with other manufacturers’ AHD products
support hotline:
Product Details
Structure size
The structure size is shown in the figure below, the unit is millimeters, and the error is ±0.5mm. The outer diameter of the product is 28.00mm and the length is 50.00mm (as shown in the figure below).

Product parameter
Model TYD-618C42
Effective Pixels 1280H X 960V    CVBS 1200TVL 720P
Standard PAL
shutter 1/53~1/100000s;
Automatic gain AGC/ AGC + Slow   shutter
Signal-to-noise ratio >52dB(AGC OFF)
Video output standard 1.0Vp-p,75Ω
Resolution 720P
Minimum illumination Color 0.5Lux(50IRE,AGC   ON) /W:0.01Lux(50IRE,AGC ON)
Color black and white conversion Color /Auto
Color black and white conversion time control 0~255
Lens 2.8MM
Privacy zone 1~15zones
Motion detection 4 Zones
Video interface Aviation head
White balance ATW /PUSH/User1/ User   2/ Manual/ANTI CR/PUSH  LOCK
Title Can   be set
Title Position Any   position on the screen
DNR High/Medium   to high/Medium/Low to medium/Low/Off
Pic contrast 0-63
Pic sharpness 0-15
Audio none
power supply DC12V±10%   (AC24V optional)
Current The current is: 50mA±10%
The current is: 50mA±10% -20℃~60℃
The current is: 50mA±10% <90%
storage temperature -400C~+600C

Standard configuration

Serial number name quantity Unit Remark
1 Front camera 1 Only Standard

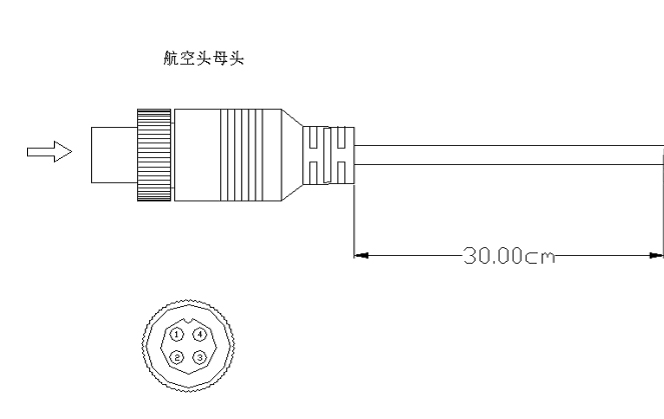

Connector description


1 VCC-12V power supply
2 GND-ground
3 Audio signal (optional)
4 Video signal
